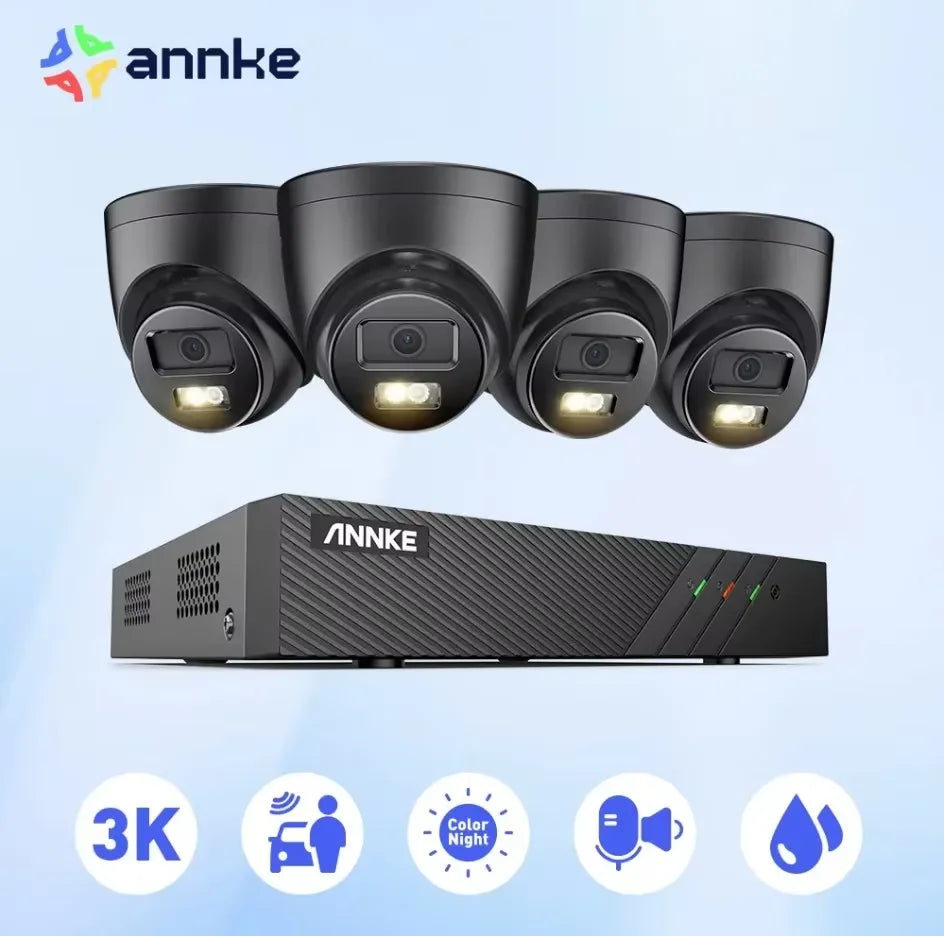

annke-3k-6mp-ultra-hd-poe-video-surveillance-system-8ch-nvr-recorder-3k-security-cameras-cctv-kit-smart-dual-lights-ip-camera
annke-3k-6mp-ultra-hd-poe-video-surveillance-system-8ch-nvr-recorder-3k-security-cameras-cctv-kit-smart-dual-lights-ip-camera
Couldn't load pickup availability

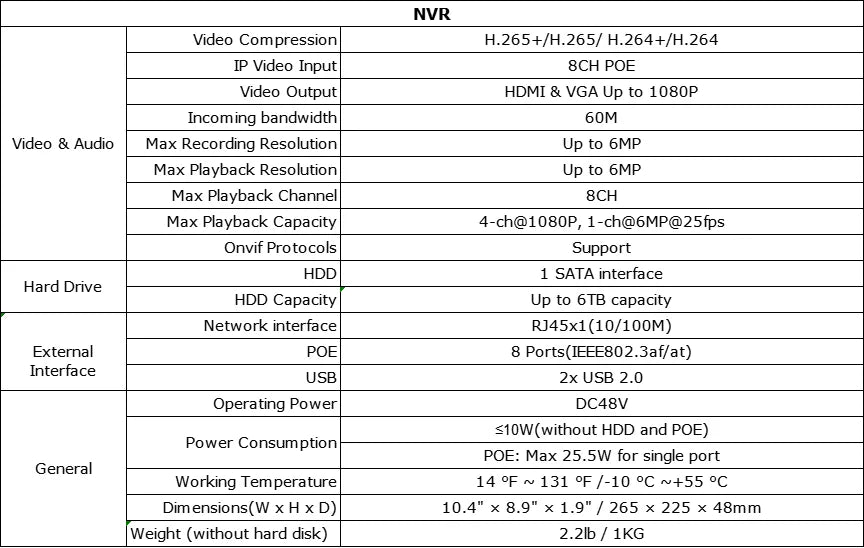

NVR Key features:
· 6MP high definition Real-time live viewing, recording&playback
· Up to 8 channel IP camera connectable with built-in PoE inputs
· Advanced H.265+ compression effectively reduces the storage space by up to 75%
· Smart playback to improve the playback efficiency
· Supports iPhone、iPad、Android mobile remote monitoring
· Annke vision for easy remote monitoring

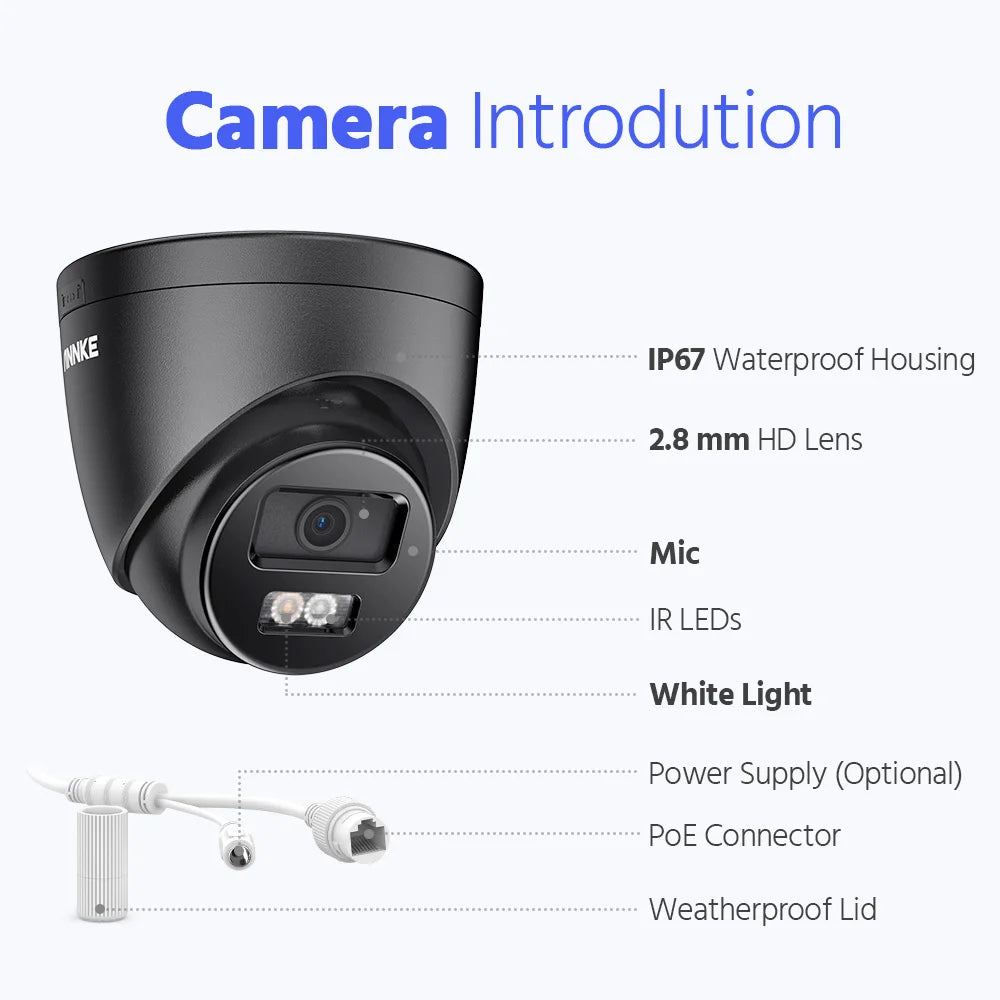

CAMERA Key features:
★ 3K IR Network Camera with 16:9 image scale
★ 2.8mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Smart Dual-Light: advanced technology with long range
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in microphone for real-time audio security
★ Support on-board storage up to 256 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
If you choose 2pcs camera, it will be shipped without wires
|
IP Camera |
||
|
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
|
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
|
Main Stream |
50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) |
|
|
Substream |
50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) |
|
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
|
Video Bitrate |
32 Kbps - 6 Mbps |
|
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
|
|
Audio Input |
Built-in Microphone, record with audio |
|
|
Lens |
2.8 mm |
|
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
|
Angle of View |
Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° |
|
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
|
Supplement Light Range |
IR: up to 30 m, wite Light: up to 20 m |
|
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
|
Wide Dynamic Range |
120 dB WDR |
|
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
|
|
API |
Open Network Video Interface Version 18.12 |
|
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
|
Privacy Mask |
4 programmable polygon privacy masks |
|
|
General Function |
Mirror,rotate,password protection, remote access |
|
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
|
General |
Housing |
Metal & Plastic |
|
Color |
White & Black |
|
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 256 GB |
|
|
Hardware Reset |
Yes |
|
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
|
Interface Protection |
IP67 |
|
|
Dimension (L X W X H) |
170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
|
|
Weight |
0.6 lb./270 g |
|
